MT Message Blocks Explained: The 5 Blocks Behind Every SWIFT Message

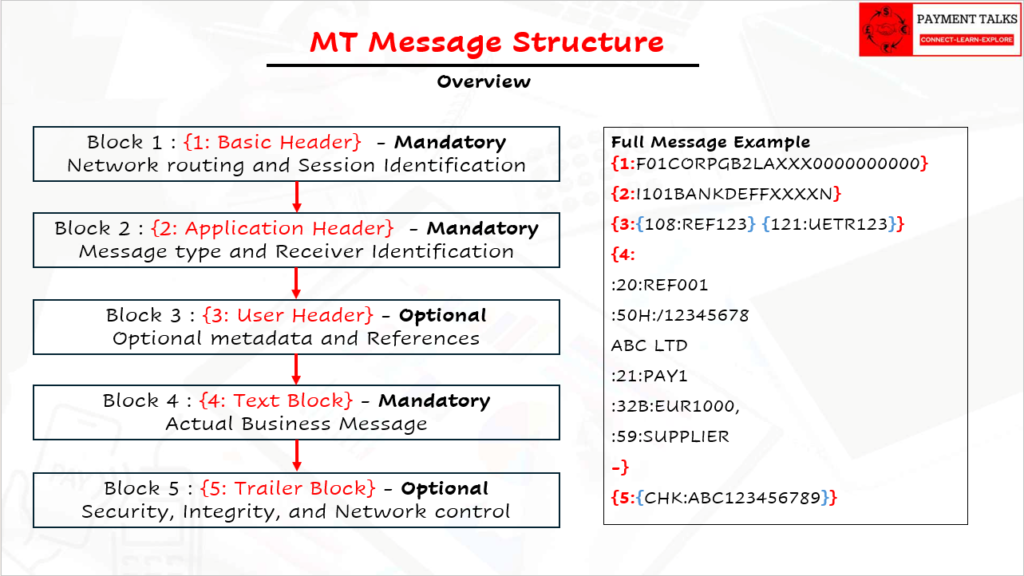

What Are the Five MT Message Blocks?

Every MT message is built from up to five MT message blocks. Each one is numbered, wrapped in curly braces, and does exactly one job. Miss that structure and you end up debugging the wrong layer when a payment goes sideways.

{1: Basic Header Block}

{2: Application Header Block}

{3: User Header Block}

{4: Text Block}

{5: Trailer Block}

Each block:

• has a fixed role
• follows specific structural rules
• and is processed by different layers of the messaging stack

Think of an MT message like a courier package moving through a logistics network. Block 1 is the depot’s dispatch stamp: who sent it, which session, which sequence number, information the network needs but the recipient never sees. Block 2 is the shipping label: where it’s going, what kind of parcel it is, how urgent. Block 3 is the internal tracking tag the sender’s back office sticks on for its own reconciliation. Block 4 is what’s actually inside the box: the payment instruction itself. Block 5 is the tamper seal that proves nothing was opened or altered in transit.

Keep that picture in mind. It’s the fastest way to know which block to check first when something goes wrong.

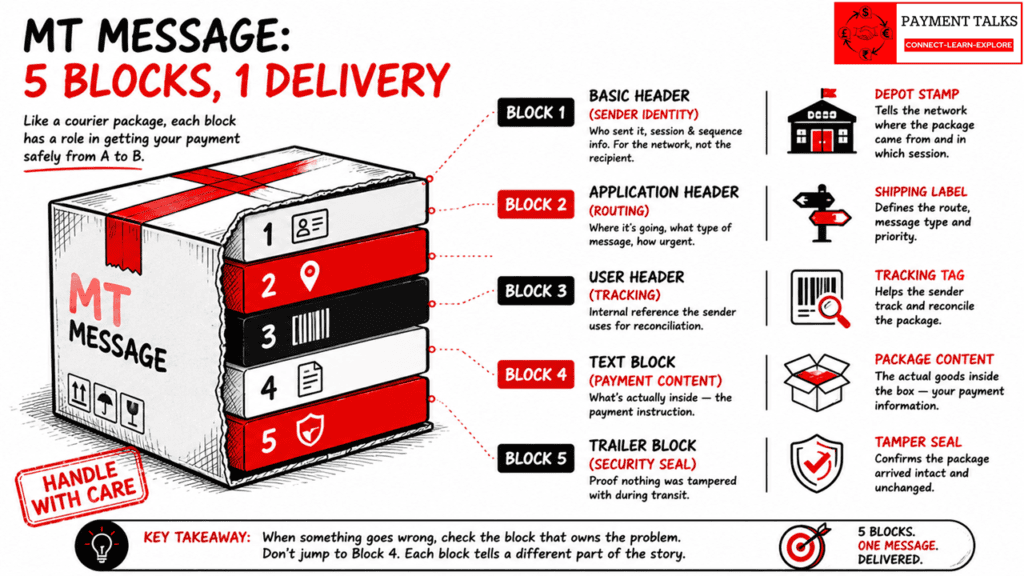

[VISUAL:MT message as a cut-away courier package with 5 stacked layers labeled Block 1 through Block 5 and their function. ]

Block 1: Basic Header Block, Network Identity and Session Control

Purpose

• Identifies the sender’s logical terminal
• Establishes session and sequence context
• Enables network-level tracking and uniqueness

Characteristics

• Mandatory
• Fixed structure
• Generated by the sending system
• No business data

Contains (High-Level)

• Application identifier
• Service identifier
• Sender logical terminal
• Session number
• Sequence number

Field Structure

Position	Tag/Field	M/O	Description	Data Type/Format	Example
a	Block Identifier	Mandatory	Fixed value indicating the Basic Header Block.	1x (numeric)	1
b	Application Identifier	Mandatory	Identifies the application (e.g., FIN for user-to-user messages).	1a (char)	F
c	Service Identifier	Mandatory	Specifies the service type (e.g., 01 for FIN user-to-user).	2n (numeric)	01
d	LT Identifier (Logical Terminal Address)	Mandatory	Sender’s LT for input messages or receiver’s for output; 12-character BIC + LT code (8+1+3 format).	12x (alphanumeric)	CITIFRPPAXXX
e	Session Number	Mandatory	Identifies the current FIN session (4 digits).	4n (numeric)	0070
f	Sequence Number (ISN/OSN)	Mandatory	Unique 6-digit sequence for input (ISN) or output (OSN) session.	6n (numeric)	970817

Full example: {1:F01CITIFRPPAXXX0070970817}

Block 2: Application Header Block, Message Direction, Type, and Routing

Block 2 defines how the message flows through SWIFT. It exists in two variants: Input (I) when a message is sent to SWIFT, Output (O) when a message is delivered by SWIFT.

Purpose

• Defines message direction
• Identifies message type (MT103, MT202, etc.)
• Specifies sender/receiver context
• Controls message priority

Characteristics

• Mandatory
• Direction-dependent structure
• Partially generated by SWIFT (Output)
• Used heavily in investigations and tracing

Contains (High-Level)

• Direction indicator (I / O)
• Message type
• Logical terminal (receiver or sender reference)
• Priority
• Delivery timestamps (Output only)
• Message Input Reference (Output only)

Input Format Fields (to SWIFT)

Field	Tag/Name	M/O	Description	Data Type/Format	Example
1	Input/Output ID	Mandatory	Identifies direction to SWIFT (‘I’ for input).	1a	I
2	Message Type	Mandatory	3-digit SWIFT MT identifier (e.g., 101 for MT101).	3n	103
3	Destination Address	Mandatory	Receiver’s 12-char LT address (BIC + LT code).	12x	NDEANOKKBXXX
4	Priority	Optional	Delivery priority: S (system), N (normal), U (urgent).	1a	U
5	Delivery Monitoring	Optional	Monitoring: 1 (warning), 2 (notification), 3 (both).	1n	3
6	Obsolescence Period	Optional	Delay time in 5-min units before DLM/warning (003=15min U, 020=100min N).	3n	003

Full input example: {2:I103NDEANOKKBXXXU3003}

Output Format Fields (from SWIFT)

Field	Tag/Name	M/O	Description	Data Type/Format	Example
1	Input/Output ID	Mandatory	Identifies direction from SWIFT (‘O’ for output).	1a	O
2	Message Type	Mandatory	3-digit SWIFT MT identifier.	3n	103
3	Input Time	Mandatory	Sender’s local input time (HHMM).	4n	1734
4	Message Input Reference (MIR)	Mandatory	28-char ref: date (6n) + sender LT (12x) + session (4n) + seq (6n).	28x	150713NDEANOKKBXXX0073969842
5	Output Date	Mandatory	Receiver’s local output date (YYMMDD).	6n	160713
6	Output Time	Mandatory	Receiver’s local output time (HHMM).	4n	1634
7	Priority	Optional	Delivery priority: N (normal), U (urgent).	1a	N

Full output example: {2:O1031734150713NDEANOKKBXXX00739698421607131634N}

Block 3: User Header Block, Application-Level Metadata and References

Block 3 carries user-defined and SWIFT-defined metadata that supplements the business message.

Purpose

• Carry tracking identifiers
• Support end-to-end reference correlation
• Provide processing instructions or flags

Characteristics

• Optional
• Message-type independent
• Does not contain business payment data
• Elements are called User Header Elements, not fields

Common Elements (Examples)

• Message User Reference (MUR)
• Unique End-to-End Transaction Reference (UETR)
• Processing indicators

Common Fields

Tag	M/O	Description	Data Type/Format	Example
103	Optional	Service Identifier for FIN-copy service (e.g., PM processing); absent means direct delivery. Used in MT103, 202, 204.	{103:3!a}	{103:AB1}
108	Optional	Message User Reference (MUR): sender’s free-format reference up to 16 chars.	{108:16x}	{108:ABC123}
113	Optional	Banking Priority: 4-char code agreed between users (sender-set, receiver may ignore).	{113:4!x}	{113:URGT}
119	Optional	Validation Flag: requests STP (103+ rules) or COV (MT202 COV); absent defaults to core rules. Mandatory for MT202 COV.	{119:STP} / {119:COV}	{119:STP}
121	Optional (mandatory for MT103/202/205 payment variants)	Unique End-to-End Transaction Reference: UUID-like for payment chaining.	{121:36!x}	{121:3fad5ba3-748b-44ba-80a4-ee32507b8e35}
111	Optional	Service Type Identifier: global payment service code (e.g., 001).	{111:3!n}	{111:001}

Full Example: {3:{108:0000000000000zza}{111:001}{121:4936052d-7584-436f-aa55-a47914c1cc4c}}

Other fields appear contextually depending on the message and its routing: {106:} (Message Input Ref), {115:} (Addressee Info for Y-copy), {423:} (Balance Checkpoint), {424:} (Related Ref), {165:} (Server Info), and {433:/AOK/} (Sanctions Screening).

Block 4: Text Block, Business Content of the Message

Block 4 is the core of the MT message. This is where the actual payment or financial instruction lives.

Purpose

• Carry business data
• Define who pays whom, how much, when, and how
• Represent the semantic meaning of the message

Characteristics

• Mandatory
• Message-type specific
• Contains MT fields
• Governed by MT Field Format language

Contains

• MT fields identified by tags (e.g., :20:, :32A:, :50K:)
• Field formats using symbols like n, a, c, x, d
• Length rules, optionality, repetitions, and letter options

Structure

Here’s where it gets tricky. The field tag defines what a field means structurally, not what the data inside it looks like. Take the Ordering Customer or Beneficiary fields, tags like :50K: or :59:. Those are name and address fields by definition. But it’s common to see a string in there that looks exactly like a BIC to the naked eye.

A system reading the message correctly still treats that line as free-text name and address, because that’s what the field tag says it is, not as a coded party identifier. Get that distinction wrong in your parsing logic and straight-through processing breaks downstream, even though the message itself is perfectly valid.

Block 5: Trailer Block, Security, Integrity, and Network Controls

Block 5 contains trailer information added by SWIFT to ensure message integrity and security.

Purpose

• Verify message authenticity
• Detect tampering or corruption
• Support network-level validation

Characteristics

• Optional
• Generated and interpreted by SWIFT infrastructure
• Not part of business processing
• Elements are called Trailer Elements, not fields

Common Elements (Examples)

• Message Authentication Code (MAC)
• Checksum (CHK)
• Test and Training indicators

Structure

Tag	M/O	Description	Data Type/Format	Example
MAC	Optional (Mandatory for authenticated messages)	Message Authentication Code. Ensures message authenticity and integrity between SWIFT participants.	Fixed-length alphanumeric (SWIFT-generated)	{MAC:ABCDEF12}
CHK	Optional	Checksum. Used to verify message completeness and detect transmission errors.	Fixed-length alphanumeric	{CHK:123456789ABC}
TNG	Optional	Test and Training Indicator. Marks the message as test or training traffic.	Fixed literal (no value)	{TNG:}
PDE	Optional	Possible Duplicate Emission indicator. Flags a message that may be a duplicate.	Fixed literal	{PDE:}
DLM	Optional	Delayed Message Indicator. Indicates delayed delivery of the message.	Fixed literal	{DLM:}

Full Example: {5:{CHK:123456789ABC}{MAC:ABCDEF12}}

The Troubleshooting Mistake Everyone Makes With MT Message Blocks

Ask any operations team where to look first when a payment stalls or a trace comes back empty, and almost everyone points straight at Block 4. That instinct makes sense. Block 4 is where the actual payment sits: who’s paying whom, how much, and through which accounts.

But Block 4 is rarely the whole story. A session mismatch in Block 1 can stop a message from being accepted before anyone even reads the payment content. A wrong priority or destination address in Block 2 sends the message down the wrong path entirely. A missing UETR in Block 3 breaks end-to-end tracing across correspondent banks, even when the payment data itself is perfect. A failed MAC or checksum in Block 5 flags the whole message as untrusted, regardless of what Block 4 says.

The fix isn’t complicated. When a payment misbehaves, work block by block before you work field by field. Confirm the session and sequence in Block 1. Confirm direction, type, and priority in Block 2. Check whether a UETR or MUR should be present in Block 3 and isn’t. Only then dig into the Block 4 payment content.

How MT Message Blocks Work Together (Architectural View)

Layer	MT Block	Role
Network Layer	Block 1	Sender identity and session
Routing Layer	Block 2	Direction, message type, priority
Application Metadata	Block 3	References and tracking
Business Layer	Block 4	Payment data
Security Layer	Block 5	Integrity and authentication

This layered design is deliberate. It directly influenced the architecture of modern messaging standards.

Think back to the courier package. Depot stamp, shipping label, internal tag, box contents, tamper seal. Five layers, five jobs, zero overlap.

MT Message Blocks and Their Relationship to ISO 20022

ISO 20022 formalizes the same separation of concerns MT message blocks already use.

MT Concept	ISO 20022 Equivalent
Blocks 1 & 2	Application Header (AppHdr)
Block 3	Application / Business references
Block 4	Business Message (pacs, pain, camt)
Block 5	Network / envelope controls

Understanding MT blocks makes ISO 20022 easier to learn, easier to map against, and easier to troubleshoot once you’re live.

Key Takeaways

• MT messages are block-structured by design, with up to five MT message blocks doing five distinct jobs
• Each block has a clear, non-overlapping role
• Only Block 4 carries business fields; Blocks 1, 2, 3, and 5 handle network, routing, tracking, and control
• Most troubleshooting time gets spent in Block 4 when the actual fault often sits in Block 1, 2, 3, or 5
• This separation is the foundation ISO 20022 formalized into AppHdr, business message, and envelope controls
